Product Overview

1、The system provides all-round flight information display and guidance services for inbound and outbound passengers and pick-up and drop off personnel in the airport terminal.

2、FIDS information comes from air traffic control department (flight plan, aviation telegram), manual input by staff, and other airport information systems. FIDS information is divided into basic information, plan information, dynamic information and temporary information.

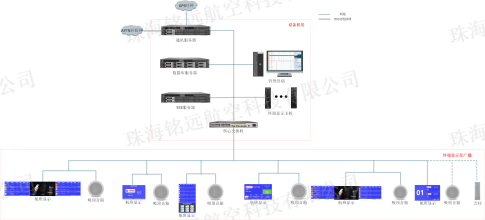

System Structure

System Function

1、Departing passengers：Departure flight display, departure check-in guidance display, departure waiting guidance display, departure boarding guidance display, departure VIP guidance display.

2、Arriving passenger：Arrival flight display, baggage guidance display.

3、Departing and Arriving passengers：Safety inspection message, announcement prompt message, festival celebration message, inspection and quarantine message, frontier inspection message, temporary announcement message, public service publicity video, commercial advertising video.

Technology Characteristic

1、Simple maintenance: the Browser/Server structure conforms to the future technology development trend, and remote maintenance is realized by using the monitoring terminal.

2、Stable operation: all display terminals in the terminal do not need application software maintenance, and ensure long-term stable operation.

3、Cross platform operation: The server side adopts Net technology to ensure cross platform operation of the system.

4、Strong scalability: the browser side uses memory structure to store dynamic information. No matter how many display terminals are added, the load of back-end database server and communication server will not be increased.

5、Mature voice technology: TTS technology is adopted in the voice broadcast system, which saves recording maintenance in the later period. Audio and video signals are extended and transmitted by IP, which not only saves equipment, but also simplifies line laying.

6、The display effect is smooth: the browser display terminal adopts the incremental update technology, and the display interface only updates the dynamic data, does not refresh the whole screen, and the screen does not flicker.

System Composition

1、Database system: it is responsible for providing the basic data required by the system, such as airports and airlines, and saving flight plans, flight dynamics, broadcast information and other data.

2、Server system: system core, supporting various display terminal services.

3、Management end system: provide information management terminal services for staff.

4、Display terminal system: use different LED screens to display flight information, rolling information, video information, etc. Including domestic departure system, check-in system, waiting hall system, VIP lounge system, boarding gate system, domestic arrival system, baggage claim system and monitoring terminal system.

Case display: Weifang Airport, Shandong Province, China.

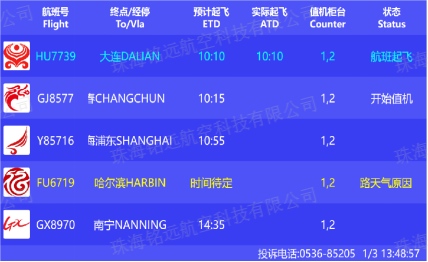

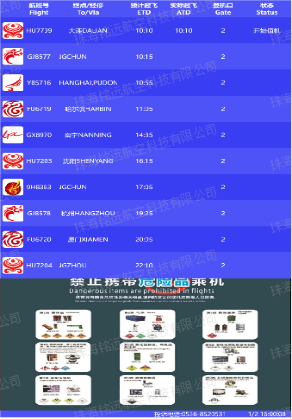

Domestic Departure System Diagram

Waiting Hall System Diagram

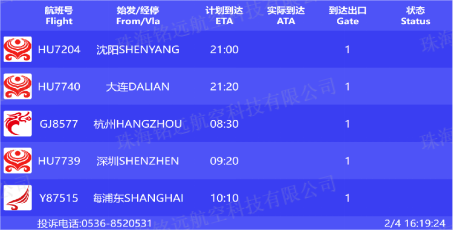

Domestic Arrival System Diagram

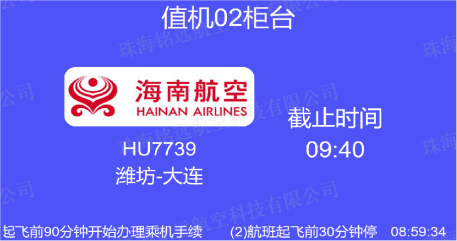

Check In Counter System Diagram

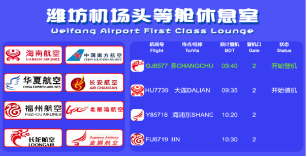

VIP Lounge System Diagram

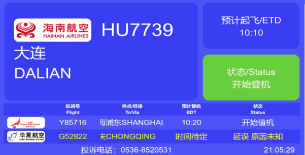

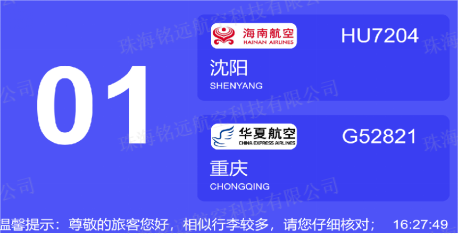

Boarding Gate System Diagram

Baggage Claim System Diagram

ELECTRICAL

Primary Power：110V — 220V AC±10%，47 — 63 Hz，single phase.

MECHANICAL

Size：180cm(H)X60cm(W)X60cm(D)，Standard 38U cabinet.

Weight：80kg.

ENVIRONMENTAL

Temperature：Indoor -10°C— +50°C.

Relative Humidity：0 — 95%.

Altitude：0m — 4500m MSL.

Duty Cycle：24 hours x 365 days.

Application Airport

Weifang in Shandong, Qiqihar in Heilongjiang, Xingyi in Guizhou, Liping  in Guizhou and other airports.
